Deion:

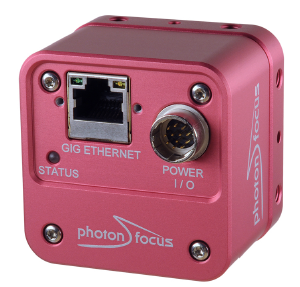

The camera series MV1-D1600(C)-G2 are based on the e2v EV76C570 CMOS image sensor. The e2v EV76C570 CMOS image sensor is optimized for low light conditions and is available as standard monochrome and colour (C) version. The cameras have the GigE interface (GigEVision)
These cameras focus on demanding applications in industrial image processing. They are optimized for low light applications. Due to the global shutter, even high-speed applications with exposure times in the μs-area are possible
Image Sensor Specifications
Sensor : e2v, EV76C570
Frame rate: 54fps
Optical Format: 1/1.8
Sensor Resolution 1600 x 1200
Pixel size 4.5μm x 4.5μm
Active optical area 7.2mm x 5.4mm
Dark current 280e-/s
Read out noise 15e-
Full well capacity / SNR 7ke- / 84: 1
Spectral range Monochrome: < 350 to 970nm (to 10% of peak responsivity)
Color: < 390 to 670nm (to 10% of peak responsivity)
Responsivity Monochrome: 982 x 103 DN / (J/m2) @ 540nm / 8bit
Color: 772 x 103 DN / (J/m2) @ 540nm / 8bit
Quantum Efficiency Monochrome: > 49%
Color: > 38%
Optical fill factor 60%
Dynamic range 52dB
Characteristic curve Linear
Shutter mode Global Shutter

Camera Specifications
Interface GigE
Frame rate 54fps
Pixel clock 60MHz
Camera taps 2
Greyscale resolution 8Bit / 10Bit
Fixed pattern noise (FPN) < 1DN RMS @ 8bit
Exposure time range 13μs - 279ms
Analog gain yes
Digital gain 0.1 to 15.99 (FineGain)
Trigger Modes Free running (non triggered), external Trigger, SWTrigger
Features Configurable region of interest (ROI), Decimation in x- and y-direction, 2
look-up tables (12-to-8Bit) on user-defined image region (Region-LUT),
Constant frame rate independent of exposure time, Crosshairs overlay on
the image, Temperature monitoring of camera, Camera informations
readable over SDK, Ultra low trigger delay and low trigger jitter, Extended
trigger input and strobe output functionality, Status line in picture
Operation temperature / moisture 0°C ... + 50°C / 20 ... 80 %
Storage temperature / moisture -25°C ... 60°C / 20 ... 95 %
Power supply +12VDC (-10%) ... +24VDC (+10%)
Power consumption < 3W
Lens mount C-Mount (CS-Mount optional)
I/O Inputs 2x Opto-isolated
2x RS-422 Opto-isolated
I/O Outputs 2x Opto-isolated
Dimensions 55 x 55 x 40mm3
Mass 212g
Connector I/O (Power) Hirose 12-pole (mating plug HR10A-10P-12S)
Connector Interface RJ-45
Conformity CE / RoHS / WEEE
IP Code IP20
