- ETA7015E8A
- 参考价格：
- 发布者：korechipic
- 查看更多 ETA7015E8A 供应商 获取更低报价
|
查看此店铺所有供求信息 联系人：颜先生 电话：0755-21001680 手机：13925219291 地址：深圳市龙华新区民治梅陇路南源商业大厦1105室 服务：  价格： 综合： 营业时间：全年营业 QQ/微信/Skype：  |
详细信息
品牌：ETA（钰泰）
封装：ESOP-8
批号：22+
数量*：15000
描述：ETA7015E8A 电子元器件 ETA 封装ESOP-8 批次22+ 电池充电管理芯片
DESCRIPTION

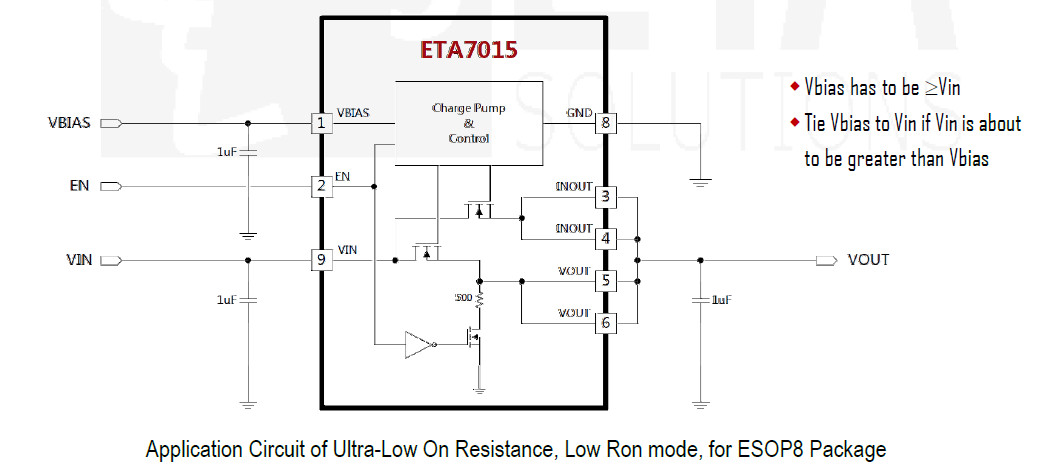

ETA7015 is an ultra-low Ron load switch capable of passing current up to 5A. It employs a unique 2-NMOS switches topology, that an ultra-low on resistance (13mohm) is achieved by connecting the 2 NMOS in parallel (Low Ron mode), or a 55mohm switch with on body diode effect is achieved by connecting the 2 NMOS in series (Reverse Blocking mode). With a separate input bias voltage (VBIAS) that ranges from 4V to 27V, Input range (VIN) can be even wider down to sub 1V range. An OVP feature is also included that it is internally set at 28V. The load switch can be turned on/off with an EN pin. It also include a quick output discharge function when off, Other protections include short-circuit protection, thermal shutdown, and UVLO.
封装：ESOP-8
批号：22+
数量*：15000
描述：ETA7015E8A 电子元器件 ETA 封装ESOP-8 批次22+ 电池充电管理芯片
DESCRIPTION
ETA7015 is an ultra-low Ron load switch capable of passing current up to 5A. It employs a unique 2-NMOS switches topology, that an ultra-low on resistance (13mohm) is achieved by connecting the 2 NMOS in parallel (Low Ron mode), or a 55mohm switch with on body diode effect is achieved by connecting the 2 NMOS in series (Reverse Blocking mode). With a separate input bias voltage (VBIAS) that ranges from 4V to 27V, Input range (VIN) can be even wider down to sub 1V range. An OVP feature is also included that it is internally set at 28V. The load switch can be turned on/off with an EN pin. It also include a quick output discharge function when off, Other protections include short-circuit protection, thermal shutdown, and UVLO.
