详细信息
品牌:微驱
封装:LQFP128
批号:15+
数量:6500
描述:Overview

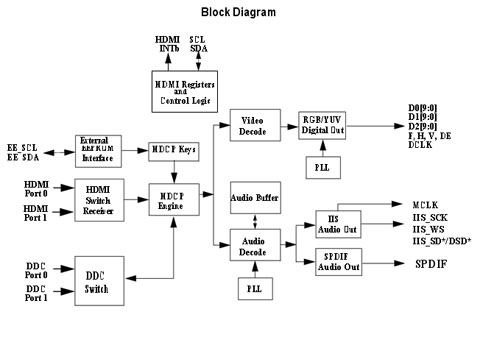

EP9853 is a low cost high performance 2-port HDMI receiver which is compliant with HDMI 1.2a and supports Digital or Analogue Video output up to UXGA and1080p. The chip integrates 2-port Equalizer Switch, HDMI core and HDCP engine in a single chip.
Feature
• On-chip 2-port HDMI receiver switch with Equalizer
• On-chip HDMI Receiver core which is compliant with HDMI 1.2a specification
• On-chip HDCP Engine which supports Repeater and is compliant with HDCP 1.2 specification
• Supports pixel clock rate from 25 Mhz to 165 Mhz
• Supports 24-bit Digital Video output up to UXGA and 1080p
• Supports Analogue Video output up to UXGA and 1080p with an on-chip 10-bit DAC
• On-chip Audio Decoder which supports 2-channel IIS and S/PDIF audio outputs
• Support audio soft mute
• Support SPDIF Channel Status extraction
• On-chip YCC422 to YCC444 conversion
• On-chip YCC to RGB and RGB to YCC conversion in ITU-R BT.601 and 709 color space
• Support 24-bit RGB or 24-bit YCbCr 4:4:4 or 16-bit YCbCr 4:2:2 digital video output
• Support Port Swapping in Digital Video output to ease PCB layout
• Support Separate Sync and Embedded Sync output for Digital Video outputs
• Support Separate Sync output and Sync On Green for Analogue Video outputs
• Support DDR in Digital Video outputs
• Register-programmable via slave IIC interface
• Flexible interrupt registers with interrupt pin
• Link On and Valid DE Detection
• Low stand-by current (< 1mA) at power down mode
• 128-pin LQFP package
深圳市凌晔科技有限公司
广东省深圳市福田区华强广场C座13L
TEL:0755-83660559
QQ:869030400
E-mail:869030400@qq.com
封装:LQFP128
批号:15+
数量:6500
描述:Overview
EP9853 is a low cost high performance 2-port HDMI receiver which is compliant with HDMI 1.2a and supports Digital or Analogue Video output up to UXGA and1080p. The chip integrates 2-port Equalizer Switch, HDMI core and HDCP engine in a single chip.
Feature
• On-chip 2-port HDMI receiver switch with Equalizer
• On-chip HDMI Receiver core which is compliant with HDMI 1.2a specification
• On-chip HDCP Engine which supports Repeater and is compliant with HDCP 1.2 specification
• Supports pixel clock rate from 25 Mhz to 165 Mhz
• Supports 24-bit Digital Video output up to UXGA and 1080p
• Supports Analogue Video output up to UXGA and 1080p with an on-chip 10-bit DAC
• On-chip Audio Decoder which supports 2-channel IIS and S/PDIF audio outputs
• Support audio soft mute
• Support SPDIF Channel Status extraction
• On-chip YCC422 to YCC444 conversion
• On-chip YCC to RGB and RGB to YCC conversion in ITU-R BT.601 and 709 color space
• Support 24-bit RGB or 24-bit YCbCr 4:4:4 or 16-bit YCbCr 4:2:2 digital video output
• Support Port Swapping in Digital Video output to ease PCB layout
• Support Separate Sync and Embedded Sync output for Digital Video outputs
• Support Separate Sync output and Sync On Green for Analogue Video outputs
• Support DDR in Digital Video outputs
• Register-programmable via slave IIC interface
• Flexible interrupt registers with interrupt pin
• Link On and Valid DE Detection
• Low stand-by current (< 1mA) at power down mode
• 128-pin LQFP package
